NET-UBQ-SW-USW-48

The Ubiquiti USW-48 is a robust 48-port managed switch designed to provide high-capacity network performance for growing businesses and complex home setups.
Featuring 48 Gigabit Ethernet ports and 4 SFP ports for fibre connectivity, it offers extensive options for building a versatile and scalable network.
Its fanless design ensures quiet operation, making it suitable for noise-sensitive environments.
With the powerful UniFi Controller, network management becomes simple, allowing you to monitor, configure, and optimise your network with ease.
Upgrade to the USW-48 for unmatched reliability, flexibility, and seamless connectivity in your network infrastructure.

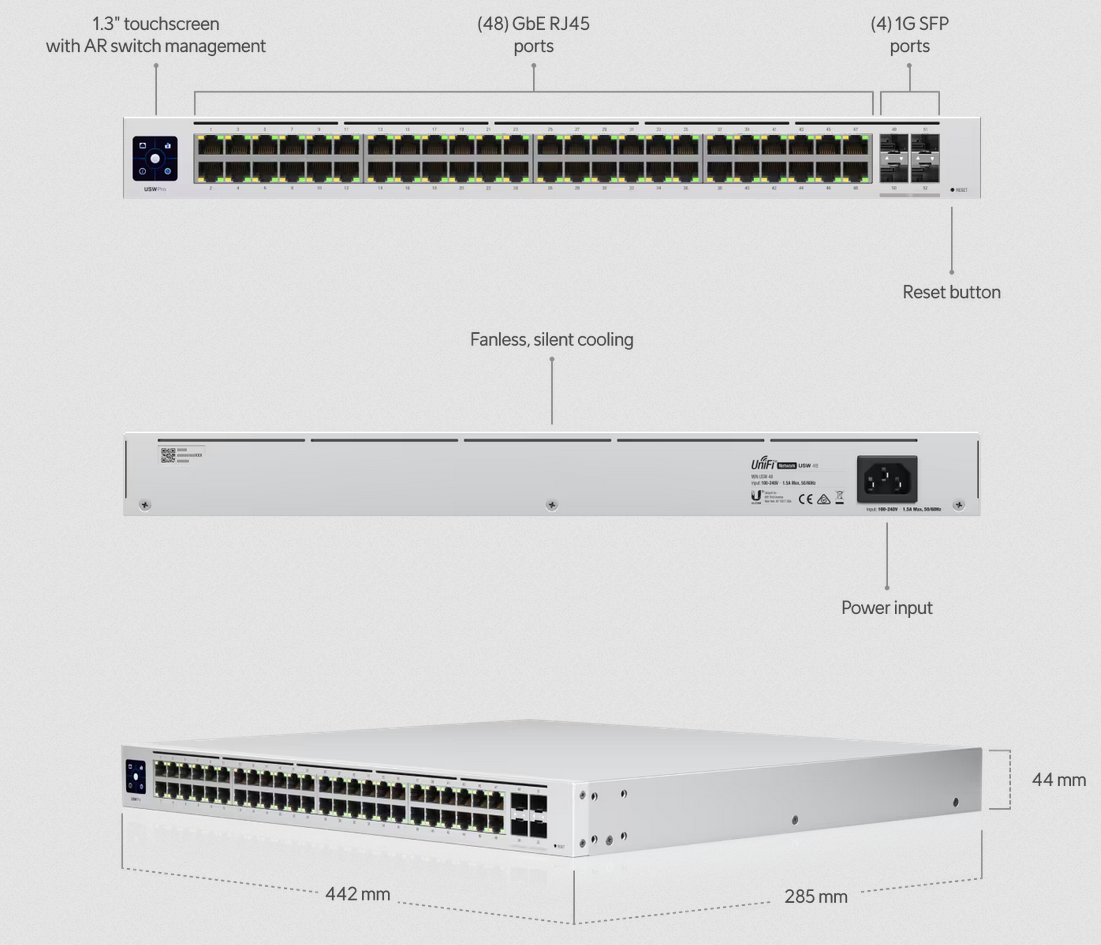

Mechanical
Dimensions		442 x 285 x 44 mm
Weight		Without mounting brackets: 3.9 kg With mounting brackets: 4 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band
Networking interface		(48) GbE RJ45 ports (4) 1G SFP ports
Total non-blocking throughput		52 Gbps
Switching capacity		104 Gbps
Forwarding rate		77.376 Mpps
Power method		Universal input, 100—240V AC, 50/60 Hz
Power supply		AC/DC, internal, 60W
Supported voltage range		100—240V AC
Max. power consumption		40W
ESD/EMP protection		Air: ± 16kV, contact: ± 12kV
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Ambient operating temperature		-5 to 40° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		–
LEDs
System		Status
Ethernet		Speed/link/activity
SFP		Link/activity
Application Requirements
UniFi Network		Version 7.2.94 and later
