NET-UBQ-GW-UDM-PRO-MAX
NET-UBQ-GW-UDM-PRO-MAX
NET-UBQ-GW-UDM-PRO-MAX
Ubiquiti UniFi Dream Machine Pro Max Firewall Gateway
Local Support in Australia and New Zealand
Quick Delivery Wide stock availability to respond to most requirements.
Our specialist support is available!

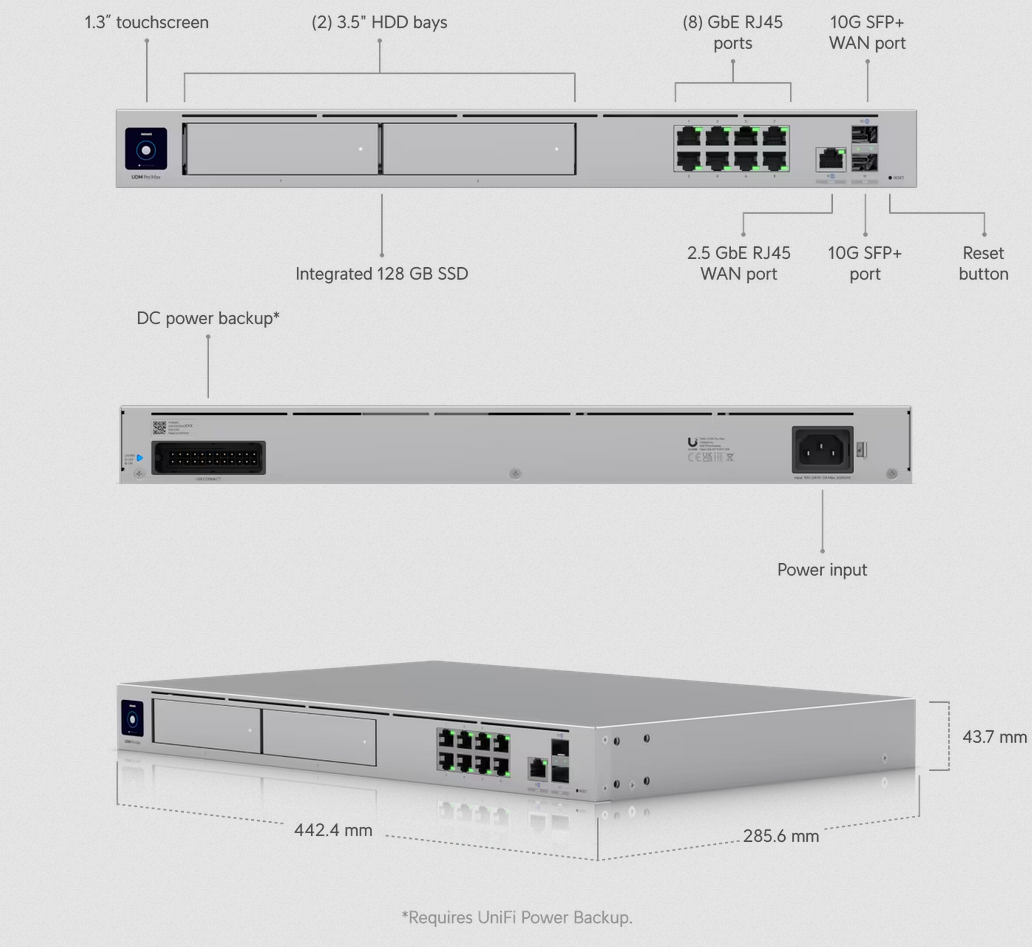

The Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max) is a high-performance enterprise-grade network device that integrates a cloud gateway, an 8-port Gigabit router, and an NVR (Network Video Recorder) into a single compact unit.
Designed for small to medium businesses, it offers impressive performance with a 2 GHz ARM Cortex-A57 quad-core processor, 8GB DDR4 memory, and 32GB of onboard storage.
It supports up to 5 Gbps IPS throughput, making it ideal for fast, secure network operations.
The UDM-Pro-Max supports both 2.5G and 10G WAN connections, with multiple LAN ports including a 10G SFP+ port, allowing seamless connectivity with other high-speed network devices.
It also features a built-in 128GB SSD for local NVR recordings, which can be expanded with additional drives for more storage capacity.
This device ensures advanced network security with features like a full stateful firewall, VPN support, and content filtering, making it a powerhouse for any business seeking robust, high-speed networking solutions
| Mechanical | ||
| Dimensions | 442.4 x 43.7 x 285.6 mm | |
| Weight | 4.7 kg | |
| Enclosure material | Aluminium CNC, SGCC steel | |
| Mount material | SGCC steel | |
| Hardware | ||
| Processor | Quad-core ARM® Cortex®-A57 at 2.0 GHz | |
| System memory | 8 GB DDR4 | |
| On-board storage | 32 GB eMMC
Integrated 128 GB SSD |
|
| Management interface | Ethernet
Bluetooth |
|
| Networking interface | LAN:
(8) GbE RJ45 ports (1) 10G SFP+ port WAN: (1) 2.5 GbE RJ45 port (1) 10G SFP+ port |
|
| IDS/IPS throughput | 5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
|
| Power method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A |
|
| Power supply | AC/DC, internal, 100W | |
| Supported voltage range | 100—240V AC | |
| Max. power consumption | 100W | |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV | |
| LCM display | (1) 1.3" touchscreen | |
| Button | Factory reset | |
| Ambient operating temperature | -10 to 40° C | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Gateway Features | ||
| Performance | Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
|
| Next-generation security | Application-aware firewall rules
Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
|
| Advanced networking | License-free SD-WAN
WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
|
| LEDs | ||
| Ethernet | Green: link/activity | |
| SFP+ | Green: link/activity | |
| HDD | White: disk activity
Amber: disk error |
|
| RPS | Blue: ready |
| Section Name | Description |
|---|---|
| Mpn | UDM-Pro-Max |
| Brand | Ubiquiti |
